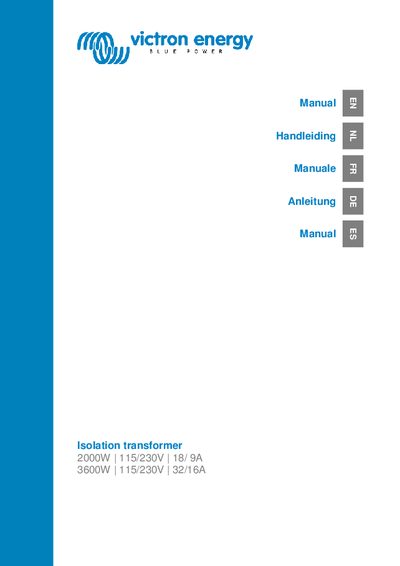

This manual introduces the product features and usage methods of the Victron Energy 2000W/3600W Isolation Transformer.
This manual provides safety rules, installation steps, wiring diagrams, and adjustment instructions for Victron Energy isolation transformers. It covers two power versions – 2000 W and 3600 W – and specifies required clearances, grounding, and cable sizes.
The document also includes warranty and liability statements, as well as contact information for Victron Energy support.
| Power rating (2000 W model) | 2000 W | 115/230 V | 18/9 A |
|---|---|
| Power rating (3600 W model) | 3600 W | 115/230 V | 32/16 A |
| Minimum cable cross‑section (2000 W, 115/120 V) | 2.5 mm² (AWG 13) |
| Minimum cable cross‑section (2000 W, 230/240 V) | 1.5 mm² (AWG 16) |
| Minimum cable cross‑section (3600 W, 230/240 V) | 2.5 mm² (AWG 13) |
A clear space of 10 cm must be kept around the product for ventilation.
It is a Safety Class 1 product supplied with a protective grounding terminal.
Connect the enclosure to ground via the M4 stud on the bottom of the enclosure.
