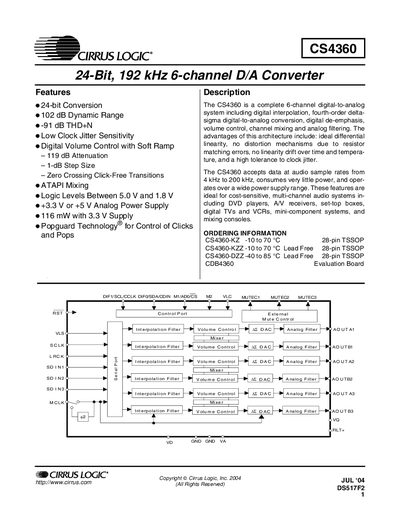

The document is about Cirrus Logic CS4360 24-Bit, 192 kHz 6-channel D/A Converter. It contains the product's features and characteristics.
The CS4360 is a complete 6‑channel digital‑to‑analog converter featuring 24‑bit conversion, 102 dB dynamic range, –91 dB THD+N, and digital volume control with soft‑ramp. It operates from 4 kHz to 200 kHz sample rates and supports both +3.3 V or +5 V analog power supplies, consuming only 116 mW at 3.3 V.
Designed for cost‑sensitive multi‑channel audio systems, the device is used in DVD players, A/V receivers, set‑top boxes, digital TVs, VCRs, mini‑component systems and mixing consoles. It is supplied in a 28‑pin TSSOP package and meets a wide temperature range from –55 °C to 125 °C (operating) and –65 °C to 150 °C (storage).
| Resolution | 24‑bit |
|---|---|
| Dynamic Range | 102 dB |
| THD+N | -91 dB |
| Power Consumption (3.3 V) | 116 mW |
| Analog Power Supply Options | +3.3 V or +5 V |
| Sample Rate Range | 4 kHz – 200 kHz |
| Package | 28‑pin TSSOP |
| Operating Temperature | -55 °C to 125 °C |
| Storage Temperature | -65 °C to 150 °C |
The CS4360 provides a dynamic range of 102 dB.
It consumes 116 mW when powered from 3.3 V.
The device operates from –55 °C to 125 °C and can be stored from –65 °C to 150 °C.
The CS4360 is available in a 28‑pin TSSOP package.
