HT6010/HT6012/HT6014 312 series encoder products, using CMOS LSI technology, with low power consumption, high anti-interference, low standby current, minimum transmission word, four word TE trigger, one word data trigger, built-in oscillator needs only 5% resistor, easy interface with an RF or infrared transmission medium, minimal external components, pair encoders can be complementary, meet various application needs.
The HT6010, HT6012 and HT6014 are 3‑inch CMOS encoders designed for remote‑control applications such as burglar alarms, fire alarms, garage‑door and car‑door controllers. They can encode 12 bits of information, with programmable address/data pins and selectable TE or data‑trigger transmission modes.

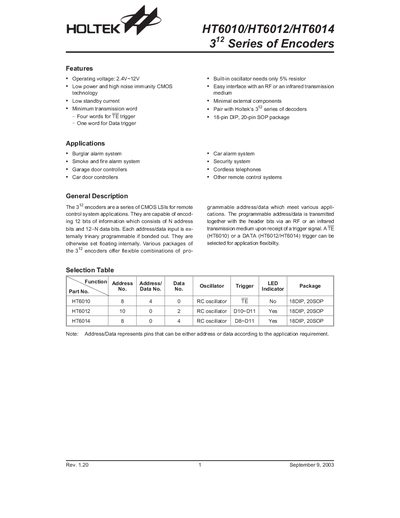

The datasheet details operating voltage, standby current, oscillator frequency, package options, pin functions, absolute maximum ratings, and example transmitter circuits. It also includes mechanical data for carrier‑tape handling and contact information for Holtek sales offices worldwide.
| Operating voltage | 2.4 V ~ 12 V |
|---|---|
| Standby current | < 1 A (Vpp = 5 V) |
| Package options | 18‑pin DIP, 20‑pin SOP |
The HT6010 operates from 2.4 V to 12 V.
Transmission is enabled by applying a low signal to the TE pin.
They are offered in 18‑pin DIP and 20‑pin SOP packages.
