This is the technical manual for SGMAH, SGMPH, SGMGH, SGMSH servo motors and SGDM drives.
The SGMSH servo motor series offers high acceleration with a high torque‑inertia ratio and is designed for harsh work environments. It has a rated and maximum speed of 3000 rpm and is used in bag‑making machines, forming machines, PCB drilling, and high‑speed work‑master equipment.

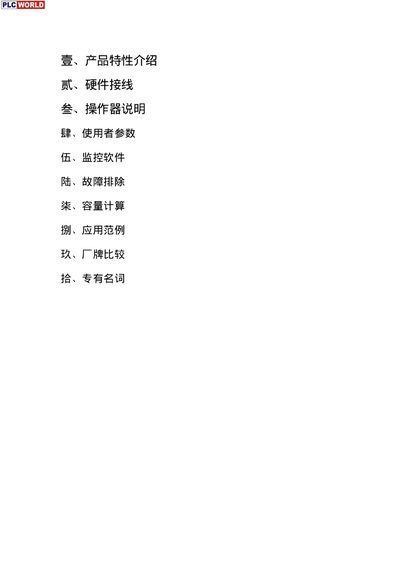

The manual covers product features, hardware wiring, operator instructions, user parameters, monitoring software, troubleshooting, capacity calculation, application examples, brand comparison, and a glossary of terms. This manual is written in Chinese.
| Rated speed | 3000 rpm |
|---|---|
| Maximum speed | 3000 rpm |
| Power rating range | 30 W – 7.5 kW |
The SGMSH servo motor has a rated speed of 3000 rpm.
It is suitable for bag‑making machines, forming machines, PCB drilling, and high‑speed work‑master equipment.
The motor is designed for harsh work environments (GTP67).
