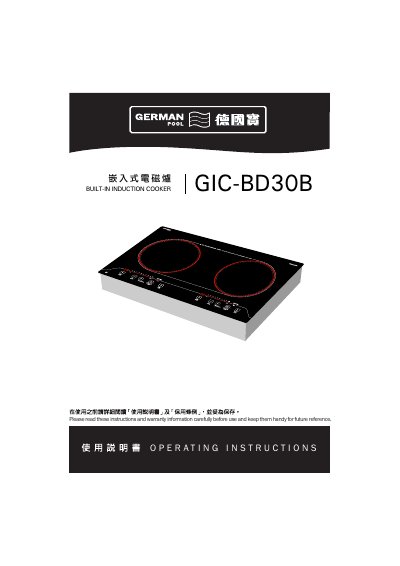

This manual explains how to install the GIC‑BD30B induction cooker. It specifies the required cutout dimensions (649 mm W × 379 mm D), a minimum 25 cm clearance beneath the unit, and the need for an earthed power outlet. After cutting the opening, attach the supplied rubber tape, place the unit, and connect the power plug.
Operating instructions cover the control panel functions, power‑level settings (300 W to 2400 W), timer setup, and cookware requirements. Safety cautions, cleaning guidelines, and warranty terms are also included.
| Cutout dimensions | 649 mm W × 379 mm D |
|---|---|
| Ventilation clearance | ≥ 25 cm under unit |
| Maximum cookware diameter | 25 cm |
| Minimum cookware diameter | 12 cm |
| Maximum cookware weight (with food) | 6 kg |
| Warranty period | 12 months from date of sale |
Cut a hole of 649 mm W × 379 mm D in the countertop, keep at least 25 cm clearance below, attach the rubber tape, place the unit, and connect it to an earthed power outlet.
Use ferromagnetic metal cookware such as stainless steel or cast iron with a flat bottom of at least 12 cm diameter, not exceeding 25 cm diameter and weighing no more than 6 kg with food.
The warranty is valid for 12 months from the date of sale, provided the product is registered within 10 days and the original purchase invoice is presented.
