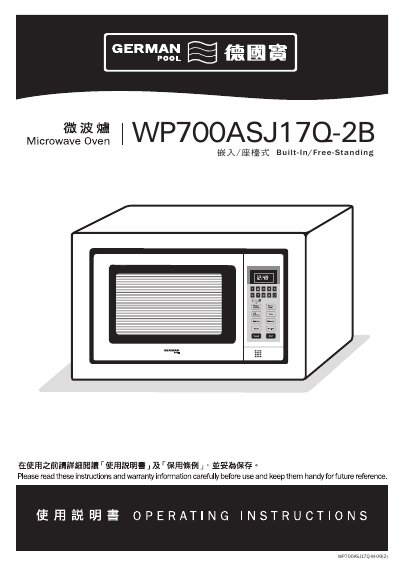

This document is an instruction manual for WP700ASJ17Q-2B and WP700ASJ17Q-M-09(2) built-in/free-standing microwave ovens, including installation, operation, and maintenance.
The guide begins with important safety notices and installation instructions, covering required clearances, grounding and proper placement of the oven. It then explains microwave cooking principles, suitable utensils, product structure and the control panel layout.
Subsequent sections detail step‑by‑step operating instructions, programming functions such as weight defrost, jet defrost and express cooking, as well as care, cleaning, maintenance, technical specifications and warranty terms. This manual is written in Chinese.
| Voltage / Frequency | 230 V / 50 Hz |
|---|---|
| Rated Power | 1.2 kW |
| Overall Dimensions (H × W × D) | 318 mm × 458 mm × 374 mm |
| Cavity Dimensions (H × W × D) | 206 mm × 300 mm × 284 mm |
| Capacity | 17 L |
| Net Weight | 12.9 kg |
Allow at least 20 cm above the oven, 10 cm at the back, and 5 cm on each side, and do not cover any openings.
Press the 5 and 7 keys simultaneously; a beep sounds and the LOCK indicator lights.
The maximum weight for meat is 300 g.
No, the oven must not be operated outdoors.
