This document describes the features and characteristics of a series of solenoid valves including 293 G010 010 025 030 EA EB 050 100 200 JA JC JE G110 G180 110 180 112 182 F 240 PA PB 300 430 600 TAC.

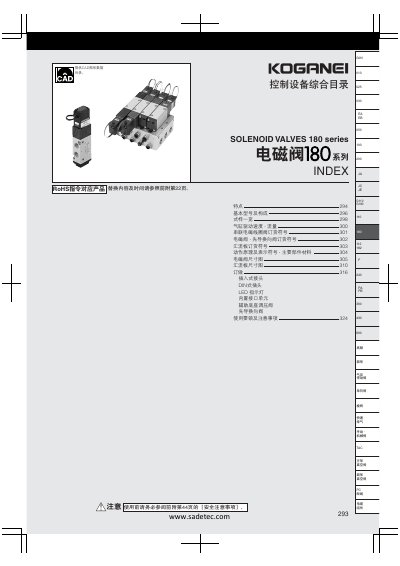

This manual covers the basic models and configurations of the Koganei 180 series solenoid valves, including single‑ and double‑coil versions, various port options, and optional accessories such as quick‑connect fittings and LED indicators. Safety precautions, installation steps, and wiring diagrams are provided to ensure correct and reliable operation.
Technical data such as pressure range, rated voltage, operating frequency, temperature limits, and electrical characteristics are listed, along with guidelines for torque settings, wire colors, and maintenance procedures for the manual and lockable button types. This manual is written in Chinese.
| Operating pressure range | 0.15‑0.7 MPa |
|---|---|
| Rated voltage | DC12 V, DC24 V, AC100 V, AC200 V |
| Maximum operating frequency | 5 Hz |
| Operating temperature range | 5 °C – 50 °C |
| Recommended tightening torque for mounting screws | 49 N·cm |
The recommended tightening torque for the mounting screws is 49 N·cm.
A 2.3‑port valve has two inlet ports and one outlet port.
If the coil polarity is reversed, the valve will not operate, but no short‑circuit will occur.
