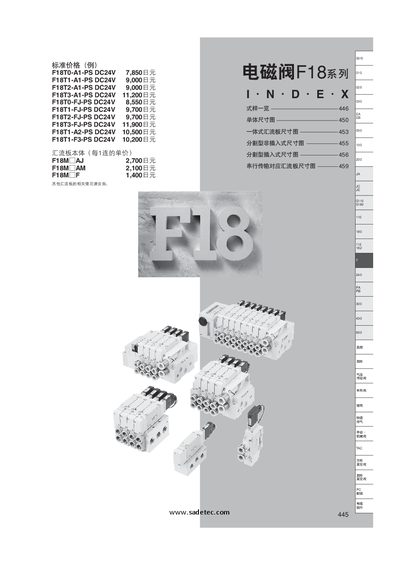

This manual provides detailed information on the Koganei F18 series electromagnetic valve, including model variants, electrical ratings, and connection interfaces. It covers installation procedures, wiring diagrams, and specifications needed for proper setup and operation.
The document also includes tables of part numbers, dimensions, and performance data such as rated voltage, power consumption, operating temperature range, and maximum switching frequency. Reference tables for pipe connections and mounting options are provided to assist technicians and end‑users. This manual is written in Japanese.
| Rated voltage | DC12V, DC24V, AC100V |
|---|---|
| Power consumption | 0.9W (DC12V), 0.9W (DC24V), 1.0VA (AC100V) |
| Maximum switching frequency | 5 Hz |
| Operating temperature range | 5‑50 °C |
The valve is rated for DC12 V, DC24 V, and AC100 V.
Power consumption is 0.9 W at DC12 V, 0.9 W at DC24 V, and 1.0 VA at AC100 V.
The maximum switching frequency is 5 Hz.
The valve can operate between 5 °C and 50 °C.
