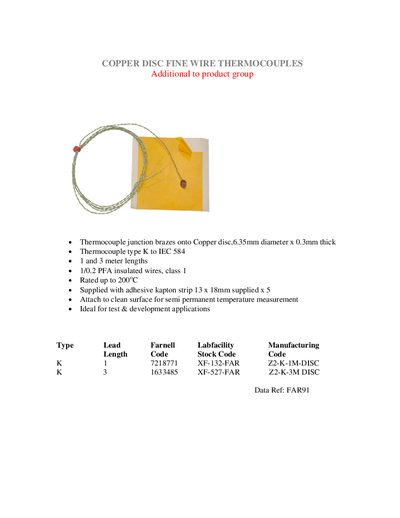

This document describes the features and characteristics of the copper disc fine wire thermocouples, including dimensions, type, length, insulation material, and temperature range.
The copper disc fine‑wire thermocouples feature a K‑type junction brazed onto a 6.35 mm diameter, 0.3 mm thick copper disc. They are supplied with a 13 × 18 mm Kapton adhesive strip for semi‑permanent attachment to clean surfaces, making them ideal for test and development applications.
Two length options are offered (1 m and 3 m) using 1/0.2 PPA insulated wires, class 1, and are rated for temperatures up to 200 °C. Part numbers XF‑132‑FAR (1 m) and XF‑527‑FAR (3 m) are listed for ordering.
| Disc diameter | 6.35 mm |
|---|---|
| Disc thickness | 0.3 mm |
| Thermocouple type | K (IEC 584) |
| Wire gauge | 1/0.2 PPA insulated, class 1 |
| Maximum temperature rating | 200 °C |
| Adhesive strip size | 13 × 18 mm Kapton |
| Available lengths | 1 m, 3 m |
It is rated for temperatures up to 200 °C.
The product is available in 1 meter and 3 meter lengths.
