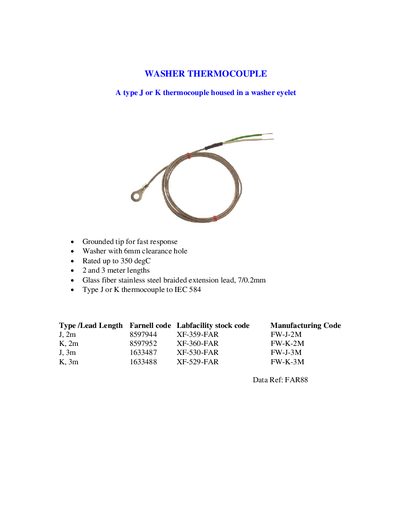

The document describes a washer thermocouple, which uses a type J or K thermocouple housed in a washer eyelet. It has a grounded tip for fast response. The thermocouple is rated up to 350 degrees Celsius. It is available in 2 and 3 meter lengths and comes with a glass fiber stainless steel braided extension lead.
The Labfacility washer thermocouple is a compact sensor housed in a washer eyelet with a 6 mm clearance hole. It features a grounded tip for fast response and complies with IEC 584 for type J or K thermocouples.
The product is offered with glass‑fiber stainless‑steel braided extension leads in 2 m and 3 m lengths, rated up to 350 °C. Part numbers include FW‑J‑2M, FW‑K‑2M, FW‑J‑3M, and FW‑K‑3M, with corresponding Farnell codes for easy ordering.
| Thermocouple type | type J or K |
|---|---|
| Lead length | 2 m or 3 m |
| Clearance hole | 6 mm |
| Maximum temperature rating | 350 °C |
| Tip design | Grounded tip for fast response |
| Lead construction | Glass fiber stainless steel braided, 7/0.2 mm |
| Standard compliance | IEC 584 |
It supports type J or type K thermocouples.
The washer thermocouple is rated up to 350 °C.
It is available with 2 m and 3 m extension leads.
