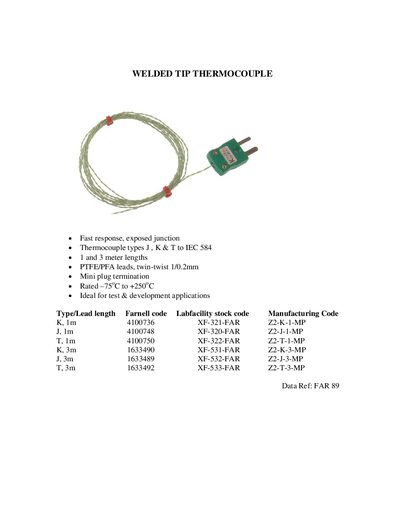

The document describes the features and characteristics of the Welded Tip Thermocouple, including fast response, exposed junction, compatible thermocouple types and temperature range. The product is ideal for test and development applications.
The Labfacility welded tip thermocouple is a fast‑response sensor with an exposed junction, suitable for test and development applications. It supports thermocouple types J, K and T and is available in 1 m and 3 m lead lengths.
Leads are PTFE/PFA twin‑twist (1/0.2 mm) with a mini plug termination. The device is rated from –75 °C to +250 °C. Part numbers and Farnell codes are listed for each type and length, and a reference code (FAR 89) is provided for further data.
| Thermocouple Types | J, K, T |
|---|---|
| Lead Lengths | 1 m and 3 m |
| Temperature Rating | -75 °C to +250 °C |
| Lead Construction | PTFE/PFA twin‑twist 1/0.2 mm |
| Termination | Mini plug |
The welded tip thermocouple is offered in types J, K, and T.
It is rated from –75 °C up to +250 °C.
Leads are available in 1 meter and 3 meter lengths.
