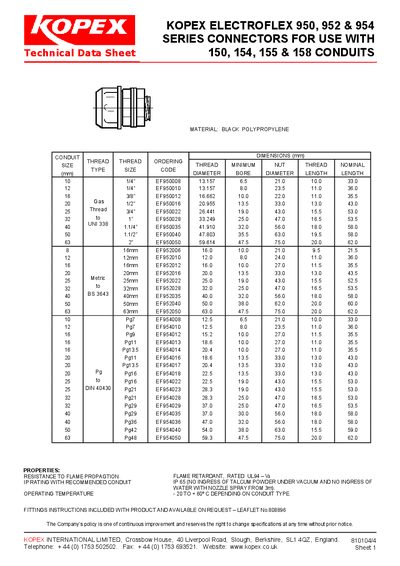

This document is the technical data sheet for KOPEX ELECTROFLEX 950, 952 & 954 series connectors. The series connectors are made of black polypropylene material, with flame retardant, waterproof and dustproof properties. They are suitable for 150, 154, 155 and 158 cable types.
The KOPEX Electroflex 950, 952 and 954 series are black polypropylene connectors designed for use with 150, 154, 155 and 158 mm conduits. The sheet provides detailed conduit dimensions, thread sizes and ordering codes for each size variant.
Key properties include an IP65 rating, flame‑retardant UL94‑V0 compliance, and an operating temperature range of –20 °C to +60 °C. Fitting instructions are supplied with the product, and additional information can be requested via the company leaflet No.808896.
| Material | Black Polypropylene |
|---|---|
| IP Rating | IP65 |
| Operating Temperature | -20 °C to +60 °C |
| Flame Retardant Rating | UL94‑V0 |
The connectors have an IP65 rating, meaning no ingress of talc powder under vacuum and no water ingress from a 3 m nozzle spray.
They can operate from –20 °C up to +60 °C, depending on the conduit type.
The connectors are made of black polypropylene.
