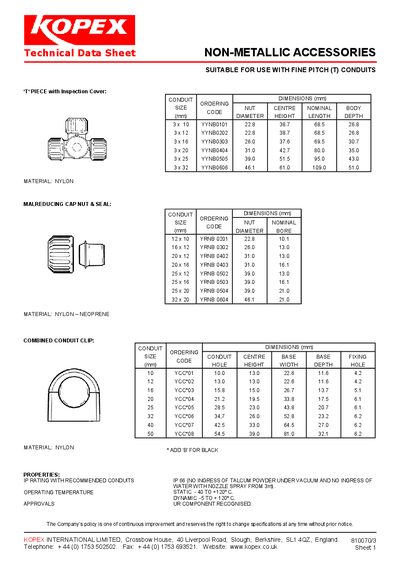

This document is a technical data sheet for non-metallic accessories. It provides information about the IP rating, operating temperature, and approvals of the products.
This data sheet provides detailed specifications for KOPEX non‑metallic accessories used with fine‑pitch (T) conduits. It lists conduit dimensions, ordering codes, material types and mechanical properties for each size variant.
The sheet also includes environmental ratings such as IP66 protection, operating temperature ranges, and approval notes, together with KOPEX's contact information for further inquiries.
| Material | NYLON |
|---|---|
| Operating Temperature (Static) | -40 °C to +120 °C |
| Operating Temperature (Dynamic) | -5 °C to +120 °C |
| Conduit size 3×10 dimensions (mm) | 22.8 × 38.7 × 68.5 |
They are made of nylon, with some variants using nylon‑neoprene.
The accessories are rated IP66, meaning no ingress of talc powder under vacuum and no water ingress from a 3 m nozzle spray.
Static temperature range is –40 °C to +120 °C, and dynamic range is –5 °C to +120 °C.
