This document provides technical data and properties of the C-type connectors for use with covered pliable conduits by KOPEX INTERNATIONAL LIMITED, including IP rating and operating temperature range.

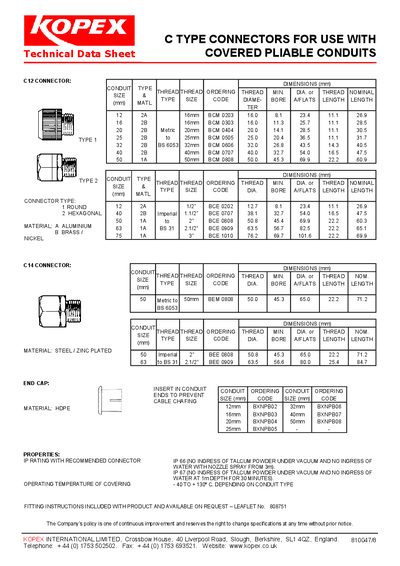

This technical data sheet provides detailed specifications for KOPEX C‑type connectors designed for use with covered pliable conduits. It includes dimensional tables for various connector sizes, material specifications, ordering codes, and end‑cap options.
The document also lists performance properties such as IP66 and IP67 ratings, an operating temperature range of –40 °C to +130 °C, and notes that fitting instructions are supplied with the product and can be requested via leaflet No. 808751.
| IP Rating | IP66, IP67 |
|---|---|
| Operating Temperature | -40 °C to +130 °C |
| Connector Material | Steel / Zinc plated (also Nickel options) |
| End Cap Material | HDPE |
| C12 Connector Size | 16 mm |
| Ordering Code (C12) | BcM0203 |
The connectors can operate from –40 °C up to +130 °C, depending on the conduit type.
Fitting instructions are included with the product and can be requested via leaflet No. 808751.
