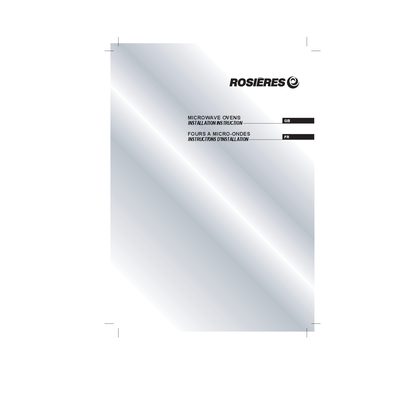

This document is the installation manual for a microwave oven.
This document provides step‑by‑step instructions for installing a Rosières microwave oven. It explains the required electrical connection, the need for an earthed socket, and the use of an all‑pole isolating switch with a minimum 3 mm contact gap.
The guide also details the mechanical installation: the oven must be placed in a built‑in cabinet without a rear wall, at a minimum height of 85 cm, with ventilation slots left clear. Adjustment screws A and B are used to set the correct clearance and secure the oven to the cabinet.
| Minimum installation height | 85 cm |
|---|---|
| Required contact gap for isolating switch | at least 3 mm |
| Electrical connection requirement | plug must be connected to a properly installed earthed socket |
The oven must be installed at a minimum height of 85 cm.
The isolating switch must have a contact gap of at least 3 mm.
No, the built‑in cabinet shall not have a rear wall behind the appliance.
