This product is a Cat.5e STP patch cable with plastic strain relief boot. It is manufactured using quality parts - 50 micron gold shielded plugs & 26AWG UL approved stranded foil screened STP cable. It is wired to 258A specification & tested to 100 MHz frequency requirements. It is available in 6 colours for immediate despatch, pin 1 to 1 wiring configuration. Custom lengths are available on short lead times. It is ideal for current networking requirements.

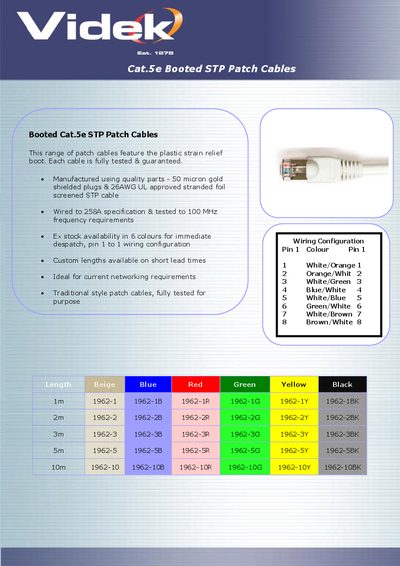

This handbook describes Videk's range of Cat.5e booted shielded twisted‑pair (STP) patch cables. Each cable features a plastic strain‑relief boot, 50 µm gold‑plated shielded plugs, and 26 AWG UL‑approved stranded foil screened conductors.
The cables are wired to the 258A specification, tested to 100 MHz, and available in six colour pairs. Standard lengths are offered from 1 m to 10 m, with custom lengths possible on short lead times. The wiring follows a pin‑1‑to‑1 configuration.
| Conductor gauge | 26 AWG |
|---|---|
| Compliance specification | 258A |
| Frequency rating | 100 MHz |
| Available colours | 6 colour pairs |
The cables use a pin‑1‑to‑1 wiring configuration.
Six colour pairs are stocked for immediate dispatch.
