Cat.5E Booted Patch Cables Cat.5E Booted UTP Patch Cables This product is a Cat.5E compliant connection line, made of 50 micron RJ45 plugs and all copper Cat.5E cables, with good compatibility and reliability. This product is available in lengths of 0.5m, 1m, 1.5m, 2m, 3m, 5m, 8m, 10m, 15m and 30m, allowing users to choose the appropriate length according to their needs.
VIDEK offers a range of Cat.5E booted UTP patch cables that are fully moulded and use 50 µm gold‑plated RJ45 plugs with UL‑approved stranded cable. The cables are backward compatible with both Cat.5 and Cat.5E networks and meet ETL‑verified EIA/TIA‑568A standards.

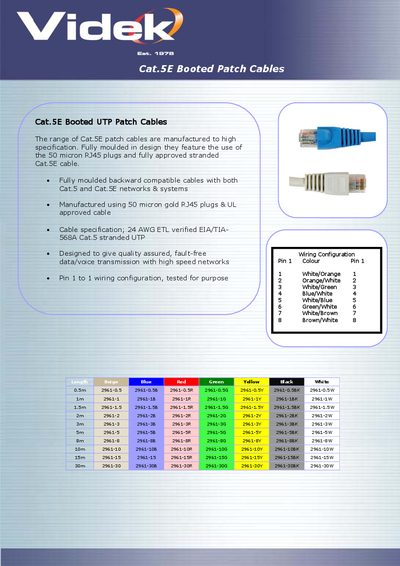

The leaflet lists the pin‑to‑pin wiring configuration (Pin 1 to Pin 1) and provides a catalog of part numbers for lengths ranging from 0.5 m to 30 m, each available in multiple colour‑coded versions.
| Cable specification | 24 AWG ETL verified EIA/TIA‑568A Cat.5 stranded UTP |
|---|---|
| Plug type | 50 µm gold RJ45 plugs |
| Compatibility | Backward compatible with Cat.5 and Cat.5E networks |
The cables use a Pin 1‑to‑Pin 1 wiring configuration that is tested for purpose.
