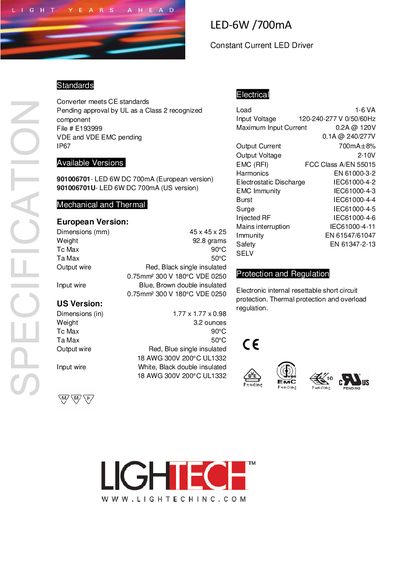

LightTech LED-6W/700mA Constant Current LED Driver User Manual

LED-6W / 700mA Constant Current LED Driver Standards Converter meets CE standards Pending approval by UL as a Class 2 recognized component File # E193999 VDE and VDE EMC pending IP67

Brand: LighTech
Category: Other
Document type: User Manual
Language: English
Pages: 2
File format: PDF
File size: 191 KB
Published: 09 April, 2012
Updated: 30 September, 2023
Model: LED-6W
MD5 checksum: 17BB91CBFD579C2CE648BD0FBFECBE05
PDF: LightTech LED-6W/700mA Constant Current LED Driver User Manual PDF

About this manual

This manual covers the LightTech LED-6W/700mA constant‑current LED driver, detailing its electrical characteristics, mechanical dimensions, and compliance certifications. It includes input and output specifications, wire types, and environmental ratings.

Installation guidance is provided with mounting instructions, wiring diagrams for series‑connected LEDs, and safety precautions such as disconnecting power before handling. The document also lists the driver’s IP67 protection, temperature limits, and approved standards.

What's inside

Specifications
Electrical Input
Output Characteristics
Mounting Instructions
Safety Instructions
Compliance and Certifications
Mechanical Dimensions

Specifications

Output Current	700 mA ±8 %
Output Voltage	2‑10 V
Weight	82.8 g
Maximum Case Temperature (Tc)	90 °C
Maximum Ambient Temperature (Ta)	50 °C

Frequently asked questions

What safety step must be taken before installing the driver?

Always disconnect power before installation or removal of the unit.

What wire gauge is recommended for the input and output connections?

Use 0.75 mm² or 18 AWG 300 V 200 °C insulated wire for both input and output.
