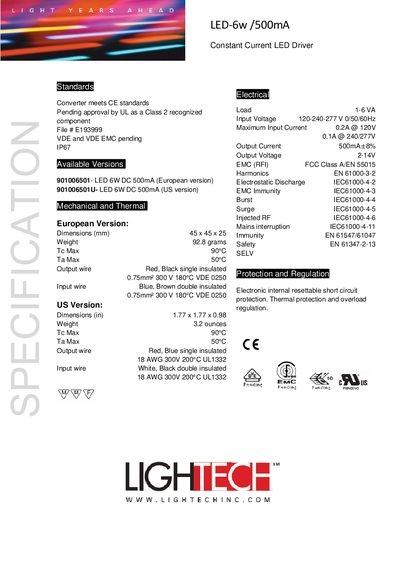

LED-6W/500mA Constant Current LED Driver Standards Converter meets CE standards Pending approval by UL as a Class 2 recognized component File # E193999 VDE and VDE EMC pending IP67
This manual describes the LighTech LED-6W constant‑current LED driver, including its electrical ratings, dimensions, and compliance markings. It lists the input voltage range (120‑240‑277 V, 50/60 Hz), output current (500 mA ± 8 %), output voltage (2‑14 V), and protection features such as overload and thermal shutdown.
Installation guidance covers mounting dimensions (45 × 45 × 25 mm), wiring requirements (input and output wires 0.75 mm² or 18 AWG), and safety procedures, emphasizing power disconnection before handling. The driver meets CE, FCC Class A, and IP67 standards and is available in European and US versions.
| Input Voltage | 120‑240‑277 V 50/60 Hz |
|---|---|
| Maximum Input Current | 0.2 A @ 120 V |
| Output Current | 500 mA ± 8 % |
| Output Voltage | 2‑14 V |
| Dimensions (mm) | 45 × 45 × 25 mm |
| Weight | 92.8 g |
| Maximum Ambient Temperature (Ta) | 50 °C |
| Maximum Component Temperature (Tc) | 90 °C |
| Output Wire Gauge | 18 AWG, 300 V, 200 °C |
It accepts an input voltage of 120 V to 277 V at 50 Hz or 60 Hz.
Up to three meters (approximately 118 inches) of LED string can be installed.
Always disconnect power before installation or removal of the unit.
