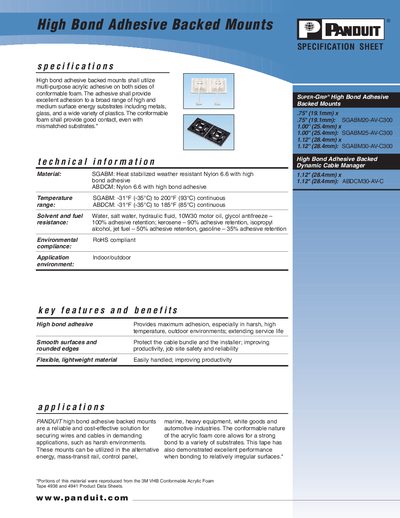

This document describes the features and characteristics of Panduit's High Bond Adhesive Backed Dynamic Cable Manager and High Bond Adhesive Backed Mounts. These products have high bond adhesive, can be used in indoor and outdoor environments, and have good solvent and fuel resistance.
The High Bond Adhesive Backed Mounts use a multi‑purpose acrylic adhesive on both sides of a conformable foam, delivering excellent adhesion to metals, glass, and many plastics. The foam conforms to irregular surfaces, ensuring good contact even on mismatched substrates.
The product line includes several part numbers (e.g., SGABM20‑AV‑C300, SGABM25‑AV‑C300) made from heat‑stabilized Nylon 6.6 with high‑bond adhesive, suitable for indoor and outdoor applications such as marine, heavy equipment, and automotive environments. Ordering information, material specifications, and application techniques are provided to aid proper installation.
| Material (SGABM) | Heat stabilized weather resistant Nylon 6.6 with high bond adhesive |
|---|---|
| Material (ABDCM) | Nylon 6.6 with high bond adhesive |
| Temperature range (SGABM) | -31°F (-35°C) to 200°F (93°C) continuous |
| Temperature range (ABDCM) | -31°F (-35°C) to 185°F (85°C) continuous |
| Environmental compliance | RoHS compliant |
Ideal tape application temperature range is 21°C to 38°C (70°F to 100°F).
Surfaces must be clean, dry, and well unified; a typical cleaning solvent is isopropyl alcohol and water.
