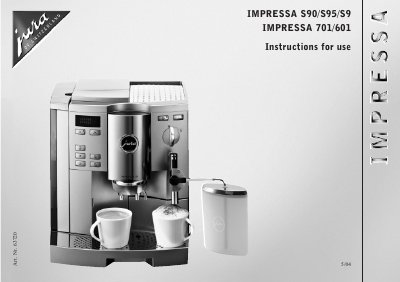

This is a user manual for IMPRESSA S90/S95/S9 IMPRESSA 701/601, introducing the functions of the product
This manual explains how to install, program, and use the Jura Impressa S90/S95/S9/701/601 fully‑automatic espresso/coffee machine. It covers safety precautions, initial setup, and detailed operating steps for coffee, hot water, steam, and cappuccino functions.
Key sections include safety instructions, water‑hardness adjustment, filter cartridge handling, programming of coffee and steam quantities, cleaning and decalcifying procedures, and a troubleshooting guide with common error messages and corrective actions.
| Voltage | 230 V AC |
|---|---|
| Output power | 1350 W |
| Fuse rating | 10 A |
| Standby power consumption | ≈ 4.4 Wh |
| Ready‑to‑make‑coffee power consumption | ≈ 31 Wh (Economy Mode on ≈ 41 Wh) |
| Pump pressure | max. 15 bar |
| Water tank capacity | 2.7 L |
| Bean container capacity | 280 g |
| Cable length | ≈ 1.1 m |
| Weight | 11.7 kg |
| Dimensions (W × H × D) | 34.5 × 35 × 39 cm |
Use the supplied test‑sticks, press the appropriate keys to display the hardness level, and confirm the setting with an acoustic signal.
Replace the filter after drawing off 50 L of water or roughly every two months, whichever occurs first.
Fill the water tank with fresh tap water and replace it, then the message will clear.
