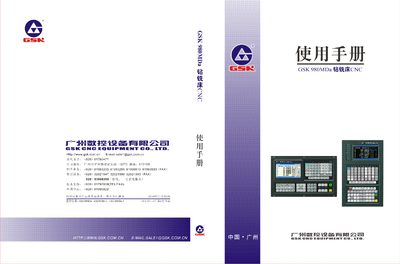

This manual provides detailed instructions on the programming, operation and installation of the GSK980MDa, GSK980MDa1 and GSK980MDa-V CNC drilling and milling machines.
The GSK980MDa CNC drilling and milling machine manual describes the system’s programming basics, operation procedures, and installation requirements. It is intended for qualified personnel who will integrate the controller into a CNC machine and use it safely.
Safety guidelines, grounding rules, and power‑off procedures are detailed, followed by chapters on programming commands, spindle and feed functions, and an appendix with alarm codes, software version notes, and model differences. This manual is written in Chinese.
| Maximum feed speed | 60 m/min |
|---|---|
| Maximum rapid speed | 60 m/min |
Only qualified personnel may operate the system; the machine must be properly grounded with resistance below 0.19 Ω, and power must be disconnected before opening the cabinet or replacing components.
For V3.03 and later, PLC alarm codes are 5000–7999 (critical alarms that stop machining) and warning codes are 8000–9999 (displayed without stopping machining).
