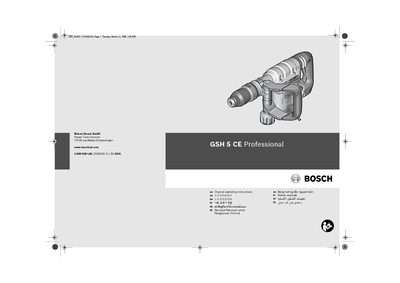

This manual provides detailed instructions for the Bosch GSH 5 CE Professional rotary hammer
The manual begins with comprehensive safety instructions for the GSH 5 CE Professional, covering general power‑tool safety, electrical safety, personal protective equipment, and proper handling of the tool and its accessories. It also outlines service recommendations and the importance of using only identical replacement parts.
The functional description section lists the tool’s technical data, product features, and accessories such as the auxiliary handle. Detailed specifications—including rated power input, impact rate, weight, voltage and protection class—are provided, followed by assembly and adjustment procedures for components like the auxiliary handle and locking sleeve.
| Rated power input | 1150 W |
|---|---|
| Impact rate | 1300–2900 impacts/min |
| Protection class | 5 |
| Voltage | 230/240 V |
Loosen the knurled nut 10, rotate the auxiliary handle 9 to the desired position, then retighten the knurled nut 10.
