This user manual mainly introduces the use and installation methods of Bosch range hoods.

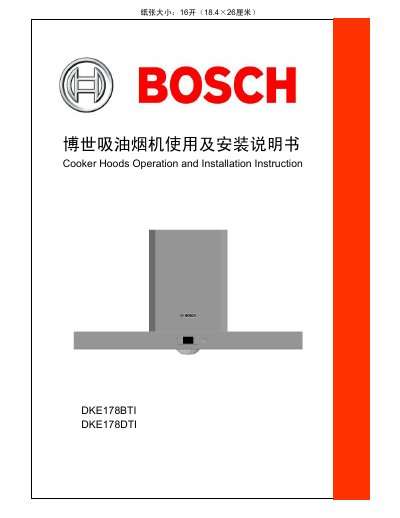

This manual provides safety precautions, installation steps, and operating instructions for the Bosch DKE178BTI/DKE178DTI range hood. It covers packaging, disposal of old hoods, positioning, mounting, duct connection, and adjustment of the canopy and oil cup.
The guide also explains the control panel functions, including lighting, fan speed, delay shutdown, lock key, and the Super Power mode, as well as cleaning, maintenance, troubleshooting, and warranty information. This manual is written in Chinese.
| Overall dimensions (L×W×H) mm | 575 × 530 × 1100 |
|---|---|
| Net weight kg | ≤70 |
| Noise level dB(A) | ≥375 (max) |
| Static pressure Pa | 15.5 ±1 |
| Air flow m³/min | 3 |
| Input power W | 190 |
| Rated voltage V | 220V~50Hz |
Press the “风速” button on the control panel to increase or decrease the fan speed; the button only adjusts speed and does not turn the fan on or off.
With the fan off, press and hold the “延时” button for 3 seconds to enter lock mode; press the same button for 3 seconds again to cancel lock mode.
Pressing the “超级能量” button runs the fan at the highest speed for 90 seconds; holding it for 3 seconds makes the fan run continuously at maximum speed.
Remove the oil filter and oil cup, clean any accumulated oil, and reinstall them before using the hood again.
