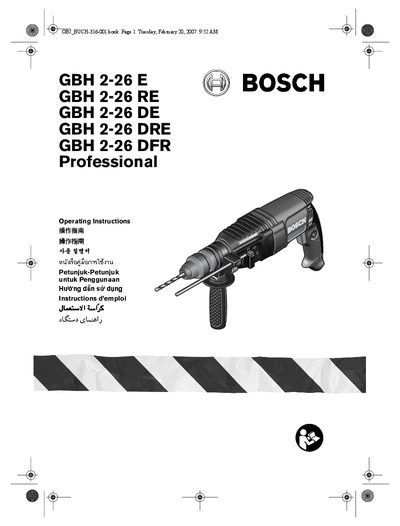

This is an operating instructions manual for GBH 2-26 E GBH 2-26 RE GBH 2-26 DE GBH 2-26 DRE GBH 2-26 DFR Professional
The manual provides comprehensive safety warnings for the GBH 2-26 rotary hammer, including work‑area safety, electrical safety, personal protective equipment, and proper tool handling. It also outlines the intended use of the tool for hammer drilling in concrete, brick, stone, and non‑impact drilling in wood, metal, ceramic, and plastic.
Technical data for the GBH 2-26 series are listed, such as rated power input, impact frequency, impact energy per stroke, and maximum drilling diameters for various materials. The document describes product features, accessories, and service recommendations, helping users operate and maintain the tool safely and effectively.
| Rated power input | 800 W |
|---|---|
| Impact frequency at rated speed | 0‑4000 bpm |
| Impact energy per stroke | 0‑3.0 J |
| Rated speed | 0‑900 rpm |
| Spindle collar diameter | 50 mm |
| Maximum drilling diameter – concrete | 26 mm |
| Maximum drilling diameter – brickwork (core bit) | 68 mm |
| Maximum drilling diameter – steel | 13 mm |
| Maximum drilling diameter – wood | 30 mm |
| Weight | 2.7 kg (2.9 kg for DFR) |
The GBH 2-26 series has a rated power input of 800 W.
The maximum drilling diameter in concrete is 26 mm.
The GBH 2-26 DFR model weighs 2.9 kg.
