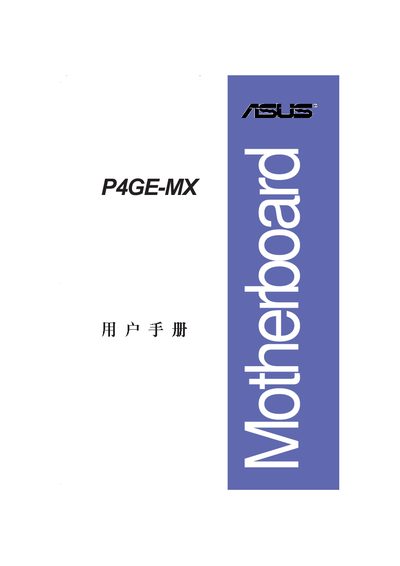

User manual for P4GE-MX 2 motherboard
This manual introduces the ASUS P4GE-MX motherboard, covering its unique features, packaging contents, and hardware layout. It guides users through safe handling, jumper settings, and connector descriptions, ensuring proper installation and operation.
The document also details BIOS program settings, software support, and upgrade procedures, along with a complete specification sheet for the CPU socket, chipset, memory, expansion slots, audio, networking, and USB interfaces. This manual is written in Chinese.
| Northbridge chipset | Intel 845GE |
|---|---|
| Southbridge chipset | Intel ICH4 (E82801DB) |
| Front‑side bus | 533/400 MHz |
| Memory type | 184‑pin DDR DIMM, PC2700/2100, unbuffered non‑ECC SDRAM |
| Maximum memory | 2 GB |
| UltraDMA | 2 × UltraDMA 100/66 |
| Audio codec | Realtek ALC655 (6‑channel) |
| Network controller | Realtek RTL8100C 10/100 Mbps |
| USB ports | 4 × USB 2.0 |
| PS/2 connectors | Keyboard and mouse PS/2 ports |
| Audio I/O | Audio input / audio output / microphone jack |
Use the ASUS online upgrade program or the BIOS upgrade utilities provided on the ASUS website.
