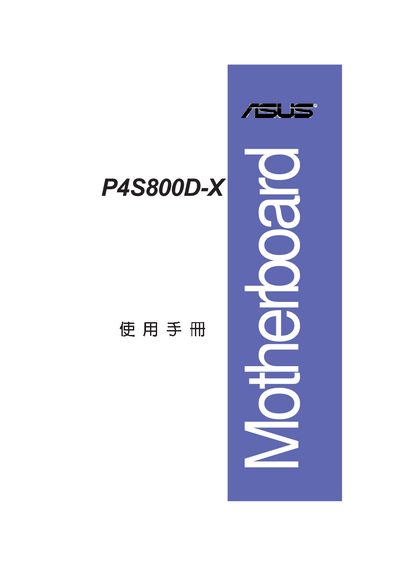

P4S800D-X Motherboard User Manual
This manual covers safety precautions, product specifications, and installation guidelines for the ASUS P4S800D-X motherboard. It includes warnings about electrical hazards, the need to disconnect power before handling components, and recommendations to use anti‑static measures.
The document also describes the motherboard’s hardware features such as the CPU socket, memory slots, AGP and PCI slots, SATA and USB connectors, as well as BIOS configuration options like Instant Music Lite and power‑management settings. This manual is written in Chinese.
| CPU socket | 478‑pin socket for Intel Pentium III/Celeron |
|---|---|
| AGP slot | AGP 8X/4X |
| PCI slots | 5 PCI slots |
| Serial ATA ports | 2 SATA connectors |
| USB ports | USB 2.0/1.1 ports (multiple) |
| Network interface | RJ‑45 Ethernet port |
The board provides five PCI expansion slots.
