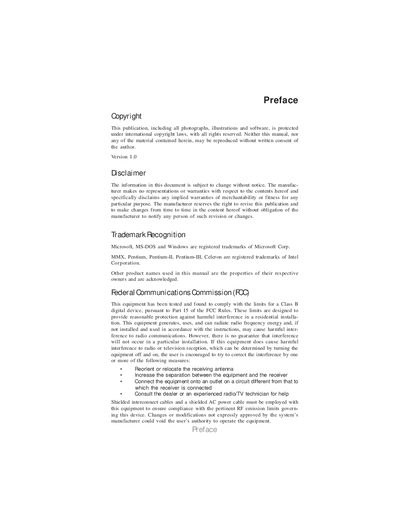

This document is a copyrighted publication that describes the features and characteristics of a product. The product is associated with several registered trademarks and has been tested and certified by the Federal Communications Commission.
This manual covers the features and specifications of the H67H2-I motherboard, including its LGA1155 socket, Intel H67 Express chipset, and support for up to 8 GB DDR3 memory. Detailed chapters guide users through installing the board, configuring BIOS settings, using the supplied software, and setting up the eJIFFY security module.
Additional sections address audio and video I/O options, expansion slots, networking, and troubleshooting common startup and operational issues. The document also includes safety precautions, FCC compliance information, and a quick reference for hardware connections.
| CPU socket | LGA1155 |
|---|---|
| Chipset | Intel H67 Express |
| Memory support | Up to 8 GB DDR3, dual‑channel |
| SATA ports | 2 × SATA 6.0 Gb/s, 2 × SATA 3.0 Gb/s |
| Audio codec | ALC892 8‑channel high‑definition |
| LAN controller | Realtek RTL8111E 10/100/1000 (optional RTL8105E) |
| Form factor | Mini‑ITX (170 mm × 170 mm) |
It uses an LGA1155 socket for Intel Sandy Bridge processors.
The board supports up to 8 GB of DDR3 memory in dual‑channel configuration.
An ALC892 8‑channel high‑definition audio codec is integrated.
