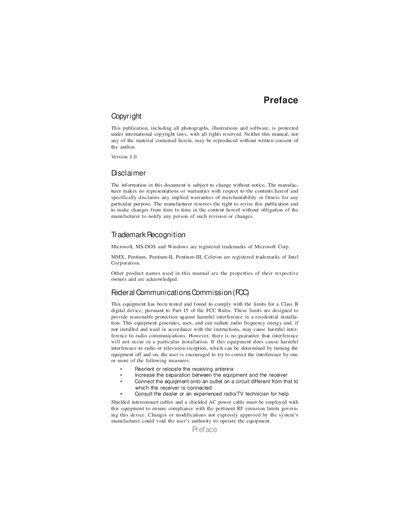

This document is a copyright statement, which declares the copyright information of the document and reserves the information of the document.
This manual introduces the G41T-M13 motherboard, detailing its features, supported processors, chipsets, memory architecture, and I/O ports. It includes chapters on installation, BIOS configuration, software installation, and troubleshooting.
The document also lists technical specifications such as CPU socket type, expansion slots, storage interfaces, audio and LAN controllers, and physical dimensions, helping users configure and maintain the system.
| CPU socket | LGA775 |
|---|---|
| Chipset | Intel G41 Northbridge and ICH7 Southbridge |
| Memory capacity | Up to 8 GB DDR3 (2 × 240‑pin DIMM sockets) |
| Memory type | DDR3 1333/1066/800 MHz, dual‑channel |
| Audio codec | VIA VT1705 6‑Channel High Definition |
| LAN controller | Realtek 8105E 10/100 (optional 10/100/1000) |
| Form factor | Micro ATX, 244 mm × 170 mm |
It uses an LGA775 socket compatible with Core 2, Pentium 4, Celeron, and other listed processors.
The board has two 240‑pin DDR3 DIMM sockets supporting up to 8 GB of memory.
Audio is provided by a VIA VT1705 6‑channel HD codec, and LAN by a Realtek 8105E 10/100 controller (optional 10/100/1000).
