This manual describes the GA-8IPE1000 P4‑series motherboard, covering its layout, connector pin‑outs, BIOS configuration, and step‑by‑step installation procedures. It includes detailed tables for CPU sockets, memory modules, expansion slots, and peripheral interfaces.
The document also contains the Declaration of Conformity for EU EMC directives and FCC Part 15 certification, safety notices, and contact information for Gigabyte technical support worldwide. This manual is written in Chinese.
| CPU socket | Socket 478 |
|---|---|
| Supported CPUs | Intel® Pentium®4 (Northwood, Prescott) |
| Memory type | DDR400 / DDR333 / DDR266 DIMM (up to 4 GB) |
| Chipset | Intel 865PE HOST/AGP/Controller |
| AGP interface | AGP 8X / 4X |
| IDE ports | 2 IDE bus master (UDMA 33/ATA 66/ATA 100) |
| USB ports | USB 2.0 / 1.1 |
| Audio codec | RealTek ALC658 |
It supports Intel® Pentium®4 processors, including Northwood and Prescott models.
The board accepts DDR400, DDR333, and DDR266 DIMM modules up to 4 GB.

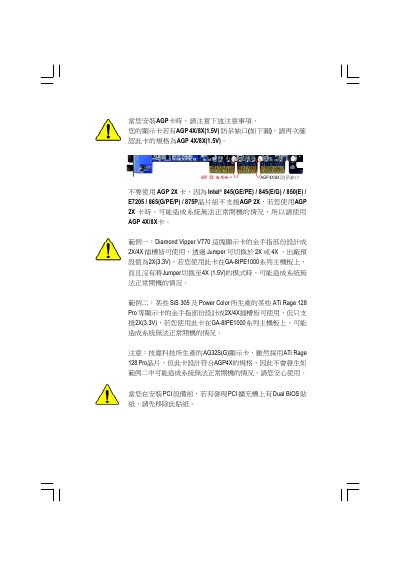

The motherboard provides AGP 8X and 4X interfaces.
Yes, it includes an FCC Part 15 declaration stating compliance with the applicable rules.
