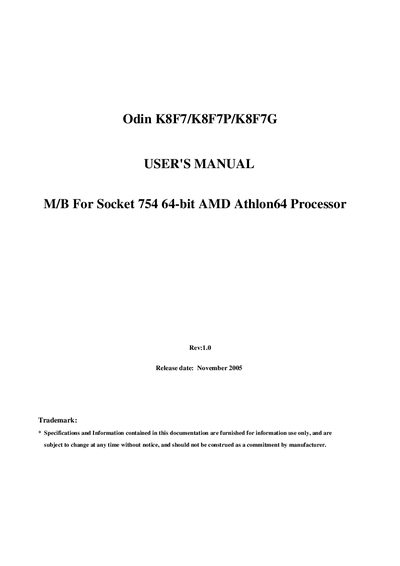

This document is the user manual for the Odin K8F7/K8F7P/K8F7G motherboard. It describes the features and characteristics of the motherboard.
The Odin K8F7 series motherboards are built on NVIDIA nForce4‑4X single‑chip technology and support 64‑bit AMD Athlon64 processors in a Socket 754 package. They feature dual‑GPU support, up to three DDR modules for a maximum of 3 GB memory, PCI‑Express x16 and x1 slots, integrated SATA RAID, and Gigabit Ethernet on the K8F7G model.
This manual covers safety notices, hardware installation procedures, jumper settings, BIOS setup, driver and utility installation, and includes a detailed layout diagram, performance data, and POST code reference for troubleshooting.
| Form factor | ATX, 4‑layer PCB, 30.5 × 24.4 cm |
|---|---|
| Chipset | NVIDIA nForce4‑4X Single Chip Technology |
| CPU socket | Socket 754 for 64‑bit AMD Athlon64 |
| Supported CPU frequency | Up to 800 MHz |
| Memory slots | 3 × 184‑pin DDR slots, DDR266/333/400, up to 3 GB |
| LAN | Fast Ethernet, 10/100 Mbps (K8F7) or 10/100/1000 Mbps (K8F7G) |
| Audio | ALC850 controller, AC’97 CODEC |
| BIOS | Award 4 MB Flash ROM |
| USB ports | 4 × USB 2.0 ports + 4 optional headers |
It uses a Socket 754 that supports 64‑bit AMD Athlon64 processors.
The board includes four USB 2.0 ports and four optional USB headers.
The motherboard is based on the NVIDIA nForce4‑4X single‑chip technology.
The board can be expanded to a total of 3 GB using three DDR modules.
