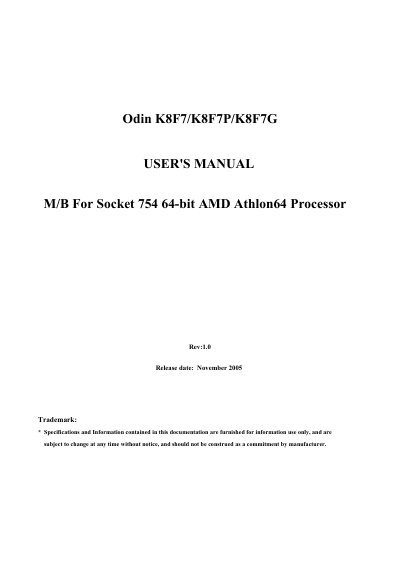

Odin K8F7/K8F7P/K8F7G Motherboard User Manual
This manual covers the Odin K8F7/K8F7P/K8F7G motherboards built on the NVIDIA nForce4‑4X single‑chip platform for 64‑bit AMD Athlon64 processors. It includes detailed hardware installation instructions, jumper settings, and a step‑by‑step guide to BIOS configuration.
Additional sections describe driver and utility installation, performance benchmarks, layout diagrams, and an appendix with debug‑port POST codes. The document serves both end‑users assembling a PC and technicians performing maintenance or upgrades.
Odin K8F7 specifications
| Form factor | ATX |
|---|---|
| PCB size | 30.5 x 24.4 cm |
| Chipset | NVIDIA nForce4‑4X |
| CPU socket | Socket 754 |
| Supported CPU | 64‑bit AMD Athlon64 |
| Memory sockets | 184‑pin DDR module (3 slots) |
| Maximum memory | 3.0 GB |
| LAN speed | 10/100/1000 Mbps |
| Audio codec | AC’97 ALC850 |
| USB2.0 ports | 4 ports |
All Odin K8F7 documents by type
Day-to-day operation, settings and troubleshooting. Start here if the product is already set up.
Questions answered in these manuals
What CPU socket does the Odin K8F7 motherboard use?
It uses a Socket 754 for 64‑bit AMD Athlon64 processors.
How many USB2.0 ports are provided on the board?
The motherboard includes four USB2.0 ports.
What CPU socket does the Odin K8F7 motherboard use?
It uses a Socket 754 that supports 64‑bit AMD Athlon64 processors.
How many USB 2.0 ports are provided on the board?
The board includes four USB 2.0 ports and four optional USB headers.
