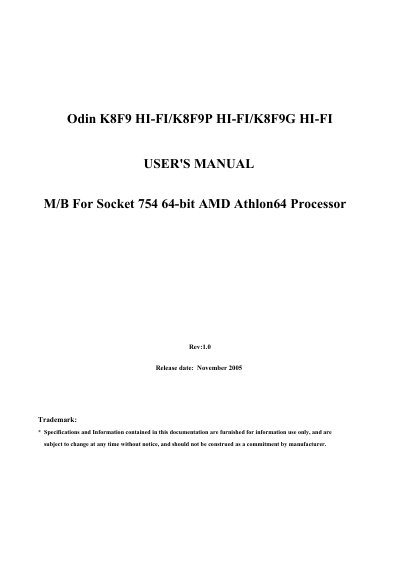

Odin K8F9 HI-FI/K8F9P HI-FI/K8F9G HI-FI USER'S MANUAL M/B For Socket 754 64-bit AMD Athlon64 Processor, This is a user manual that introduces the motherboard's features, hardware installation, BIOS settings, etc.
This manual covers the Odin K8F9 HI-FI series motherboards built on the NVIDIA nForce4‑4X chipset for 64‑bit AMD Athlon64 processors (Socket 754). It includes detailed descriptions of motherboard features, specifications, performance data, layout diagrams, and jumper settings.
The guide walks users through hardware installation steps such as CPU and memory installation, expansion card setup, connector wiring, and power‑on procedures. It also explains BIOS configuration, power‑management options, driver installation, and troubleshooting information.
| Form factor | ATX |
|---|---|
| Chipset | NVIDIA nForce4‑4X Single Chip |
| CPU socket | Socket 754 |
| Supported CPU | 64‑bit AMD Athlon64 |
| Maximum memory | 3.0 GB DDR (DDR266/DDR333/DDR400) |
| Memory slots | 3 × 184‑pin DDR module sockets |
| PCI‑Express x16 slots | 1 (up to 8 GB/s bandwidth) |
| PCI‑Express x1 slots | 1 (up to 512 MB/s bandwidth) |
| PCI slots | 3 × 32‑bit PCI |
| LAN | 10/100/1 Gbps Ethernet |
| Audio codec | VIA Envy24 (AC’97 compatible) |
| USB ports | 4 × USB 2.0 |
It uses a Socket 754 for 64‑bit AMD Athlon64 processors.
The board can be expanded to a maximum of 3.0 GB of DDR memory.
Four USB 2.0 ports are available.
It supports 10 Mbps, 100 Mbps, and 1 Gbps Ethernet.
