This soft starter is widely used in the starting field of loads such as pumps, fans and compressors, completely replacing traditional star / delta starters, autotransformer starters and magnetic control voltage starters.
The XLR1-3000 series intelligent soft starter from Xinling is a micro‑processor‑controlled device used for starting three‑phase cage‑type induction motors in applications such as pumps, fans and compressors. It replaces traditional star‑triangle, autotransformer and magnetic‑brake starters and complies with GB14048.6‑2008 and Q/ZXL0090‑2010 standards.

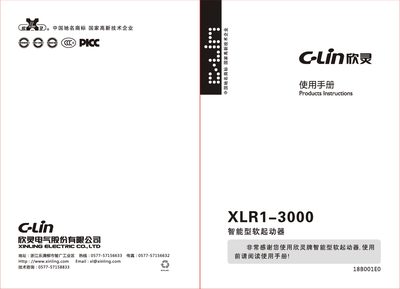

The manual covers product overview, control panel operation, protection functions, wiring diagrams, communication interfaces, parameter settings, programmable relay outputs, automatic restart, safety precautions, routine maintenance, and a parts list for various power ratings. This manual is written in Chinese.
| Rated power range | 5.5 kW – 55 kW (380 V) / 75 kW – 600 kW (660 V) |
|---|---|
| Applicable motor type | Three‑phase cage‑type induction motor |
| Cooling method | Natural air cooling |
| IP rating | IP20 |
The device provides over‑heat, input‑phase loss, output‑phase loss, phase‑imbalance, over‑current, undervoltage, overvoltage, short‑circuit, and motor‑under‑load protections.
Enter the motor’s name‑plate rated current into setting item PP.
The XLR1-3000 has an IP20 rating.
