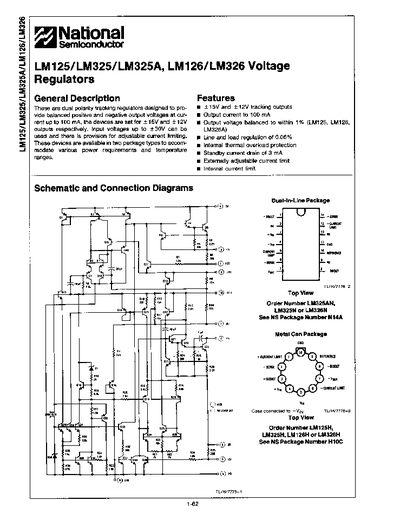

The LM125, LM325, LM325A, LM126 and LM326 are dual‑polarity tracking voltage regulators that deliver balanced positive and negative outputs (±15 V and ±12 V) with up to 100 mA load current. They feature line and load regulation of 0.06 %, internal thermal overload protection, and a standby current drain of 3 mA. Input voltages up to +30 V are supported and the output voltage is balanced within 1 %.
Typical performance graphs, absolute maximum ratings, and recommended application circuits are included. The document also lists package options (dual‑in‑line and metal‑can) and provides thermal resistance data for junction‑to‑case and junction‑to‑ambient configurations.
| Maximum output current | 100 mA |
|---|---|
| Line regulation | 0.06 % |
| Standby current drain | 3 mA |
| Input voltage range | up to +30 V |
| Output voltage balance | within 1 % |
| Thermal resistance (junction‑to‑case) | 20 °C/W |
| Operating temperature range | -55 °C to +126 °C |
The regulators can supply up to 100 mA of output current.
The line regulation is specified as 0.06 %.
The standby current drain is 3 mA.
Input voltages up to +30 V can be applied.
