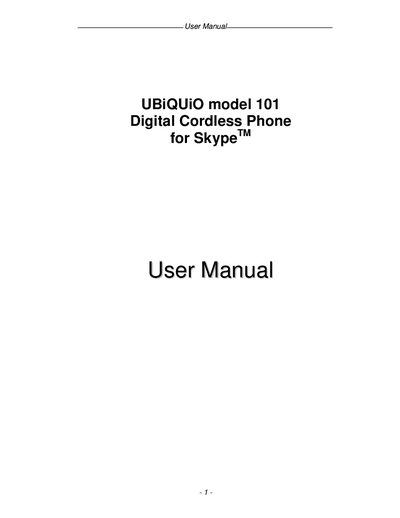

This user manual introduces the basic use of UBiQUiO model 101 cordless telephone, including installation, setup, call handling, etc., and detailed instructions on the use of Skype and SkypeOut functions.
The UBiQUiO 101 is a digital cordless phone that works with Skype, allowing ordinary telephone calls, Skype calls, and SkypeOut calls. The manual provides an overview of the product, package contents, and the minimum system requirements for using the Skype function on a PC.
It explains how to set up the handset and base unit, describes the keypad functions, and details call handling features such as making, answering, call waiting, conference calling, and intercom. Technical details like DECT frequency, range, battery life, and regulatory compliance are also included.
| Frequency range | 1.88 to 1.9 GHz |
|---|---|
| Channel bandwidth | 1.728 MHz |
| Modulation | GMSK |
| Outdoor range | Up to 300 m |
| Indoor range | Up to 50 m |
| Standby time | 90 hours |
| Talking time | 10 hours |
| Operating temperature | 0°C to 40°C |
| Storage temperature | -20°C to 60°C |
| Handset battery | 1.2 × 2 V 750 mAh Ni‑MH |
| Base unit input power | 230 V AC, 50 Hz |
| Base unit output power | 7.5 V, 350 mA |
You need a PC with at least a Pentium 400 MHz processor, Windows 2000 or XP, a USB 1.1/2.0 port, Skype version 1.2 or higher, 128 MB RAM (256 MB recommended), 10 MB free disk space, and a CD drive for the driver.
The handset provides up to 10 hours of talking time on a full charge.
The DECT system operates in the 1.88 to 1.9 GHz frequency range.
