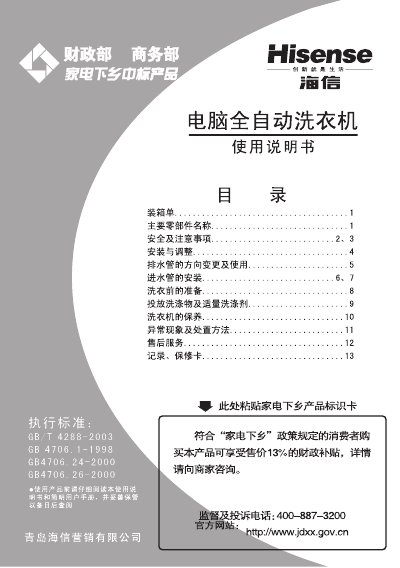

This manual covers all steps needed to install and adjust the Hisense 1XYAG3 fully‑automatic washing machine, including unpacking, positioning, and connecting water and drain pipes. Safety warnings and proper handling of electrical connections are highlighted to prevent damage or injury.
It also explains how to prepare laundry, operate wash cycles, perform routine maintenance, troubleshoot common issues, and complete warranty registration. Contact information for after‑sales service and the required subsidy documentation for the "home appliance to the countryside" program are included. This manual is written in Chinese.
| Maximum drain outlet height | < 10 cm |
|---|---|
| Maximum drain pipe length | ≤ 1.5 m |
Tilt the machine forward, remove the drain‑pipe fixing clip, pull the pipe out, then re‑attach it on the desired side and secure the clip.
The drain outlet should be less than 10 cm above the floor to ensure proper drainage.
Connect the inlet pipe connector to the faucet, tighten the four screws evenly, and ensure the threads protrude about 2 mm after tightening.
