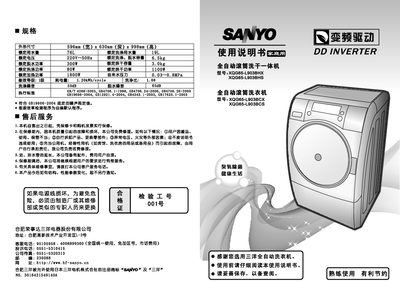

This manual covers safety precautions, proper handling, and installation of the Sanyo XQG65‑L903 series front‑load washing machine. It explains how to connect water and power, adjust the machine to be level, and remove transport bolts before first use.
The guide details the operation panel for each model variant, describes all washing programs (standard, quick, wool, air‑wash, child lock, etc.), and provides a fault‑code table with troubleshooting steps. After‑sales service contacts and warranty information are also included. This manual is written in Chinese.
| Overall dimensions (W×D×H) | 596 mm × 630 mm × 998 mm |
|---|---|
| Rated water consumption per cycle | 76 L |
| Rated wash/spin capacity | 6.5 kg |
| Rated drying capacity | 3.0 kg |
| Rated wash power | 808 W |
| Rated spin power | 300 W |
| Rated drying power | 1100 W |
| Rated heating power | 1800 W |
| Wash noise level | 50 dB |
| Spin noise level | 65 dB |
Verify that the water tap is open, the inlet hose is not frozen, and the filter at the inlet valve is not blocked.
Press the child lock key on the control panel; the lock indicator will light, preventing operation until the lock is released.
