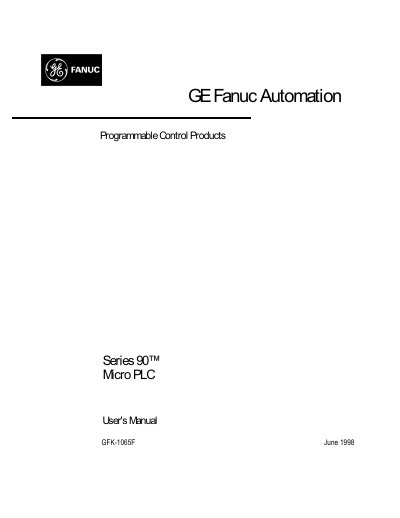

This manual introduces the features and usage of the GE Fanuc Automation Programmable Control Products Series 90™ Micro PLC product
This manual explains how to integrate a GE Fanuc Series 90 Micro PLC into industrial control applications. It includes safety warnings, hardware descriptions, installation steps, wiring guidelines, configuration procedures, and maintenance information.
The document is organized into chapters such as Quick Start, Introduction, Installation, Field Wiring, Configuration, High Speed Counters, Analog I/O, System Operation, Diagnostics, and several appendices covering timing, reference types, serial ports, converters, cable data sheets, sample applications, and case histories.
| 14‑point model I/O configuration | 8 DC inputs, 6 relay outputs |
|---|
The 14‑point model provides 8 DC input points and 6 relay output points.
