This camera uses Sony's latest high-definition CCD image sensor, has infrared night vision function, can be used day and night. The camera integrates the camera, protective cover, lens, and infrared lamp into one, is waterproof, dustproof, and meets the IP66 protection level, and is suitable for indoor/outdoor installation.

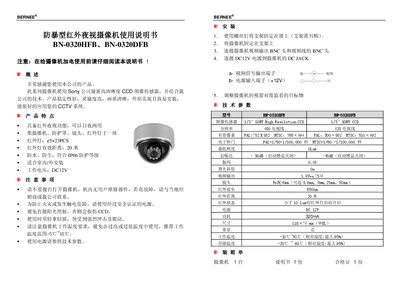

The manual introduces the BN-0320HFB and BN-0320DFB series cameras, which use a Sony high‑resolution 1/3" CCD sensor and provide day‑night operation with built‑in IR illumination. Key features include IP66 waterproof rating, DC12 V power, and a 20 m IR range.
Installation instructions detail mounting the camera on a bracket, connecting the BNC video output and DC12 V power supply, and the technical parameters list sensor type, resolution, power consumption, dimensions, and operating temperature ranges. This manual is written in Chinese.
| Image sensor | 1/3" Sony High Resolution CCD |
|---|---|
| Resolution (PAL) | 752 × 582 |
| Resolution (NTSC) | 768 × 494 |
| Minimum illumination | 0 Lux |
| Signal‑to‑noise ratio | > 50 dB |
| Lens focal length | 6 mm (optional 3.6 mm, 8 mm, 25 mm, 50 mm) |
| Power supply | DC 12 V |
| Power consumption | 320 mA |
| Dimensions | 118 × 74 mm |
| Operating temperature | -10 °C to 50 °C |
| Storage temperature | -20 °C to 60 °C |
The camera operates on a DC 12 V power supply.
The camera can operate from –10 °C to 50 °C.
