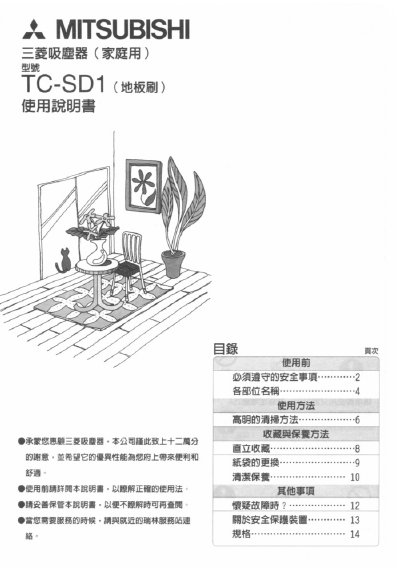

This manual explains the safety precautions that must be followed when using the TC‑SD1, including warnings about fire hazards, electrical safety, and proper handling of the power cord. It also details how to assemble the unit, connect the extension hose, and attach the floor brush.
Operating instructions cover the control panel functions, suction power settings, and cleaning methods for different floor types. Maintenance information includes how to empty the dust bag, clean the brush, and store the vacuum upright. The final section lists the technical specifications of the product. This manual is written in Chinese.
| Model | TC‑SD1 |
|---|---|
| Capacity | 1 L |
| Power Supply | 110 V 60 Hz |
| Noise Level | 62 dB (max 52 dB) |
| Power Consumption | 530 W (max 80 W) |
| Weight | 4.4 kg |
| Dimensions (W×D×H) | 20.5 × 26.0 × 23.0 cm |
The vacuum should be connected to a single‑phase 110 V AC supply with a rated current of 15 A.
When storing upright, the floor brush must be attached to the hose so the unit can stand stably.
The unit weighs 4.4 kg.
