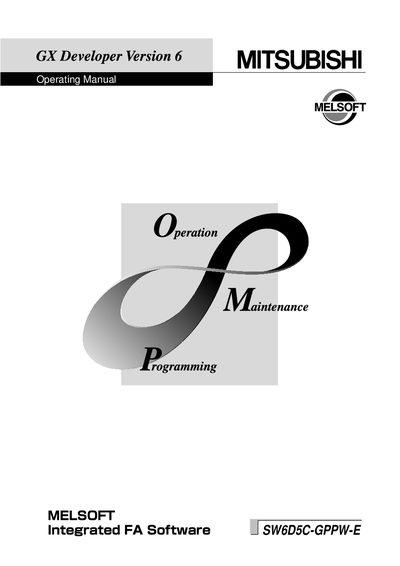

Mitsubishi Electric SW6D5C-GPPW-E Operating Manual

About this manual

This manual introduces the GX Developer Version 6 software for the Mitsubishi SW6D5C‑GPPW‑E PLC. It covers safety precautions, system configuration, and the full set of functions needed to create, edit, and manage projects, including circuit creation, instruction lists, and device comments.

The document also details parameter settings, printing options, and conversion procedures, and includes appendices with reference information. It is intended for end‑users and engineers who need to operate or program the SW6D5C‑GPPW‑E system safely and efficiently.

What's inside

• General Description
• System Configuration
• Common Operations
• Initialization
• Standardizing the Programs
• Creating Circuit
• Creating Instruction List
• Conversion
• Setting Device Comments
• Setting Statements and Notes

Specifications

Frequently asked questions

What safety precaution levels are used in this manual?

The manual uses two safety levels: DANGER and CAUTION.

Where can I find the manual number?

The manual number is printed on the bottom left of the back cover.

Which additional manual should be read for safety instructions related to the CPU module?

The CPU module user's manual should be read for safety instructions of the programmable controller system.

What is the copyright holder of this manual?

Mitsubishi Electric Corporation holds the copyright.
