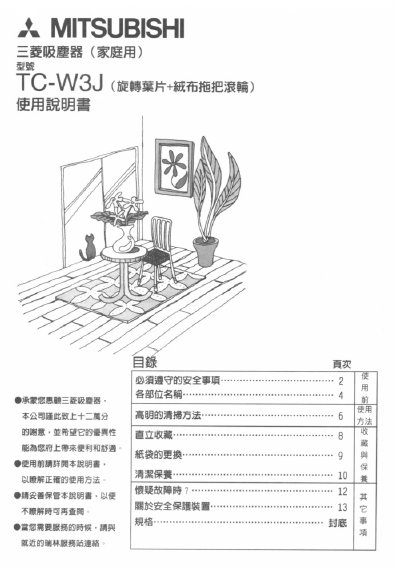

This manual provides safety guidelines, assembly instructions, and operating procedures for the Mitsubishi TC‑W3J household vacuum cleaner. It explains how to attach the floor brush, extend the hose, and adjust suction power, as well as proper cleaning and storage methods.
Additional sections cover troubleshooting tips, warranty information, and detailed technical specifications such as power rating, voltage, dimensions, and included accessories. This manual is written in Chinese.
| Model | TC-W3J |
|---|---|
| Input Voltage | 110 V AC, 60 Hz |
| Power Consumption | 1000 W |
| Motor Power | 530 W |
| Weight | 4.3 kg |
| Dimensions (L×W×H) | 33.7 × 26.1 × 20.2 cm |
No, the unit must not be rinsed with water or used in wet environments; only the floor brush may be cleaned.
Use a single‑phase AC supply of 110 V, 60 Hz with a maximum current rating of 15 A.
Turn off the unit, unplug the power cord, and store it upright with the floor brush attached to the handle.
Check for blockages in the suction inlet, clean the brush and hose, and ensure the power cord is fully inserted.
