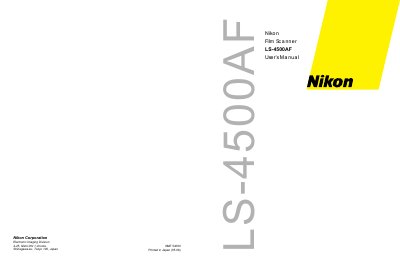

This document is the user manual of LS-4500AF scanner released by Nikon Corporation
This manual covers safe operation of the Nikon LS-4500AF film scanner, including power requirements, grounding, and handling precautions. It also explains how to connect the scanner via SCSI, load film holders, and select scanning modes.
The appendix lists detailed technical specifications such as scanning area, optical resolution, lamp type, power consumption, and weight, and provides troubleshooting and maintenance procedures for reliable performance.
| Scanning area | 5 x 6 inches (4 x 5 inch optical system) |
|---|---|
| Optical resolution | 1,000dpi x 2,000dpi (4 x 5 inch optical system) |
| Lamp | 12V 20W Halogen lamp |
| Power consumption | Approx. 45W when the power‑saver is off |
| Weight | Approx. 28.9 lbs (13 kg) |
It requires an AC100‑120V or AC200‑240V, 50/60 Hz power supply.
Reorient or relocate the receiving antenna, increase separation from the receiver, or use a different circuit; consult a technician if needed.
