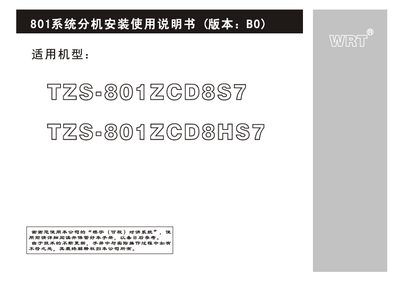

A1S -801ZCD8S7 A1S -801ZCD8HS7 801 system Extension installation Manual

The document describes a product called TZS-801ZCD8S7 and TZS-801ZCD8HS7. These products have 8 digital parameters, namely 8, 7, 6, 5, 4, 3, 2, and 1. In addition, these products also have AU-IN functionality and can operate in modes 2, 1, 8, 7, 6, 5, 4, 3, and 2, 1.

Brand: A1S
Category: Upgrade guide
Document type: Installation Guide
Language: Chinese
Pages: 39
File format: PDF
File size: 15.5 MB
Published: 28 March, 2012
Updated: 29 September, 2023
MD5 checksum: 6F91F3FF146CC503C9B6E16706832902
PDF: A1S -801ZCD8S7 A1S -801ZCD8HS7 801 system Extension installation Manual PDF

About this manual

The 801 intercom system consists of a main controller, user extensions, a management PC and auxiliary equipment. Extensions communicate via TCP/IP over Ethernet or fiber, providing digital audio/video, remote unlocking, emergency calls and home automation features.

This manual covers installation precautions, mounting steps, wiring, configuration of network parameters, password setup, security zone programming, and basic troubleshooting for the TZS-801ZCD8S7 and TZS-801ZCD8HS7 visual extension units. This manual is written in Chinese.

What's inside

System Function Overview
Component Description
Installation Precautions
Installation Method
Usage Functions
Technical Parameters
Wiring Functions
Simple Fault Troubleshooting

Specifications

Recommended mounting height	145 cm
Maximum units per household	4
Supported security zones	8
Power output	12 V DC, 5 A
Network protocol	TCP/IP

Frequently asked questions

What is the recommended installation height for the extension unit?

The unit should be mounted at about 145 cm above the floor.

How many extension units can be connected per household?

Up to four units of this type can be connected per household.

What is the default password for first‑time use?

The initial password is 88888888.

How many security zones does the unit support?

It supports eight security zones.
