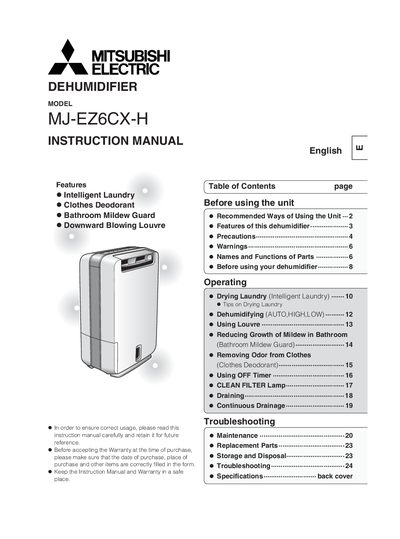

This manual provides detailed instructions for installing, operating, and maintaining the Mitsubishi Electric MJ-EZ6CX-H dehumidifier. It includes safety precautions, part identification, and troubleshooting guidance.
The document also lists technical specifications such as power requirements, dehumidifying capacity, noise levels, and dimensions, helping users understand the unit’s performance limits and proper usage conditions.
| Power supply | Single phase 220V 50Hz |
|---|---|
| Dehumidifying capacity | 6.0 L/day |
| Power (high mode) | 545 W |
| Power (low mode) | 280 W |
| Operating noise (high/low) | 46 dB / 37 dB |
| Laundry mode sound level | 49 dB |
| Water tank capacity | ≈ 2.4 L |
| Weight | 7.0 kg |
| Dimensions (H × W × D) | 485 mm × 190 mm × 324 mm |
| Standby power | ≈ 1 W |
Use exclusively 220 V AC power sockets for the power supply.
