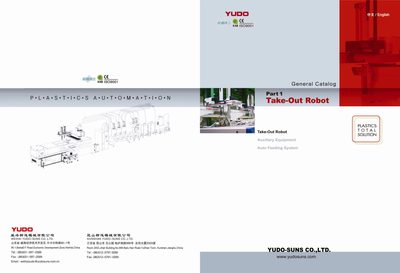

The YUDO‑SUNS Take‑Out Robot catalog presents a range of robot models (TL‑500, TL‑700, TLW‑700, TLW‑1100, TLW‑1700, etc.) used for automatic unloading in injection molding. Each model’s dimensions, stroke options, and key technical parameters such as air‑cylinder force and motor torque are listed.
The document also includes a swing‑type sprue picker series (SMUS‑450, SMUS‑600, SMUS‑800) and provides common specifications, wiring information and optional features for each robot family.
| Overall height (TL‑500) | 1277 mm |
|---|---|
| Overall width (TL‑500) | 1541 mm |
| Traverse stroke (TL‑500) | 1000 mm |
| Air cylinder driving force | 0.49 MPa |
| AC servo motor torque (TL‑500) | 4.6 N·m |
The cylinder operates at an air pressure of 0.49 MPa.
The TL‑500 can achieve a traverse stroke of 1000 mm.
The TL‑700 model is equipped with 5 servo axes.
The TL‑700’s overall height is 1536 mm.
