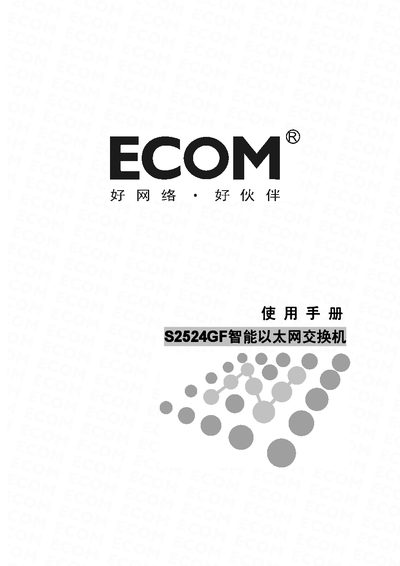

This document is a user manual for the ECOM S2524GF intelligent Ethernet switch, which describes how to configure and manage the product.
This manual introduces the ECOM S2524GF smart Ethernet switch, a 24‑port 10/100/1000 Mbps device with two gigabit SFP uplink ports. It outlines the hardware features, supported standards (IEEE 802.3, 802.1Q, 802.1x, etc.), and software functions such as VLAN, LACP, RSTP, QoS, and port mirroring.
The guide walks users through preparation, web‑based configuration, console access, and common troubleshooting steps. It also covers firmware upgrades, power‑supply diagnostics, and how to restore factory settings, helping network administrators deploy and maintain the switch efficiently. This manual is written in Chinese.
| RJ45 ports | 24 × 10/100/1000 Mbps auto‑negotiating |
|---|---|
| SFP uplink ports | 2 × gigabit SFP (mini‑GBIC) shared with RJ45 |
| Switching capacity | 48 Gbps |
| MAC address table size | 8 K entries |
| Forwarding rate (1000 Mbps) | 1 488 000 pps |
| Input voltage | 100 V–240 V AC, 50/60 Hz |
| Operating temperature | 0 °C – 40 °C |
| Dimensions | 440 mm × 180 mm × 44 mm |
Firmware can be upgraded online via the Web page’s “software upgrade” option using a .wrp file, or by loading the upgrade file from DOS.
If the front‑panel power LED is not lit, the power supply may be faulty; check the power cable connection and verify the supplied voltage matches the device requirements.
The computer must run Windows XP/2000, have an Ethernet card, a web browser such as IE 5.5 or newer, and the TCP/IP protocol enabled.
