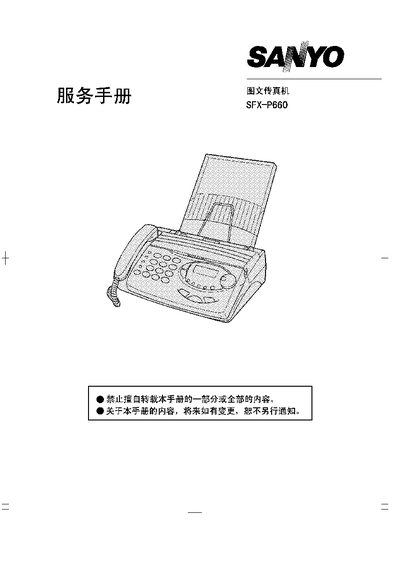

This service manual covers all aspects of the SFX-P660 fax machine, including safety warnings, connection procedures, configuration steps, and detailed maintenance instructions. It also contains diagrams, part replacement guides, and error code listings for technicians.
The document lists the main technical specifications such as power consumption, transmission speed, scanning resolution, and operating temperature, and provides step‑by‑step guidance for installing accessories, replacing consumables, and performing repairs safely. This manual is written in Chinese.
| Input voltage | AC220V |
|---|---|
| Standby power consumption | ≈3.1 W |
| Maximum power | ≈120 W |
| Transmission speed | 9600/7200/7480/72400 bps |
| Primary scan density | 8 dots/mm |
| Secondary scan density | 15.4 lines/mm (fine) |
| Scanning method | Flat‑bed CIS sensor |
| Maximum original size | 257 mm × 1.5 m (B4) |
| Weight | ≈3.6 kg |
| Operating temperature range | 5 °C – 35 °C |
The fax machine uses about 3.1 W when in standby mode.
