This document provides instructions for using a product and its accessories, including purchasing components and trademark confirmation. The product requires the use of shielded cables to comply with EMC standards. General information and warranty details are also provided.

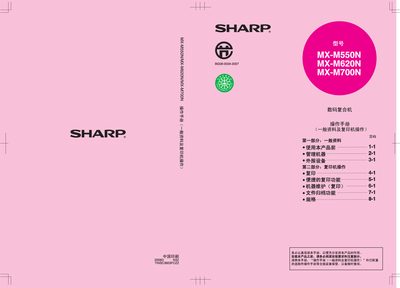

This manual provides comprehensive information for operating Sharp MX-M550N, M620N and M700N copiers. It covers safety guidelines, power‑connection requirements, installation constraints, and environmental considerations such as ozone emission and noise levels.
The document details paper‑tray loading procedures, specifications for optional high‑capacity trays, laser module parameters, routine maintenance, toner replacement, jam clearing, and file‑archiving functions. It also includes administrator settings, software installation guidance, and disposal instructions for batteries and hazardous components. This manual is written in Chinese.
| Laser wavelength | 785 nm ± 10 nm |
|---|---|
| Laser output power (max) | 0.8 mW |
| High‑capacity paper tray (AR‑LC7) capacity | 3000 sheets (80 g/m²) |
| Machine dimensions (W×D×H) | 690 mm × 587 mm × 521.5 mm |
| Machine weight | ≈ 50 kg |
| Operating noise level | > 63 dB (LwA) |
The optional AR‑LC7 tray can hold up to 3000 sheets of 80 g/m² paper.
No, the drum must not be touched because scratches or stains will affect print quality.
Connect the power cord only to a socket that matches the specified voltage and current and ensure the socket is properly grounded.
The laser output power is set to 0.8 mW ± 10 % and kept constant by automatic power control.
